Crushers

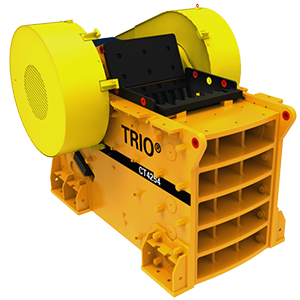

TRIO JAW CRUSHERS CT SERIES

Design Feature BenefitApplications
Heavy-duty frame Greater durability Primary crushing applications in mining, aggregates, industrial minerals, and recycling concrete and asphalt
Long crushing chamber Increased capacity
Hydraulic adjustment Easy adjustment of setting
Heavy duty manganese or alloy jaw dies Less frequent maintenance Feed size preparation for conveying, primary milling or secondary crushing
Bolted construction Allows for easy transport and accommodates underground installation Mobile mounting on wheeled or track chassis

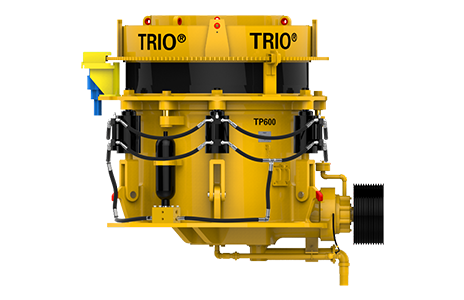

Trio Cone Crusher 1

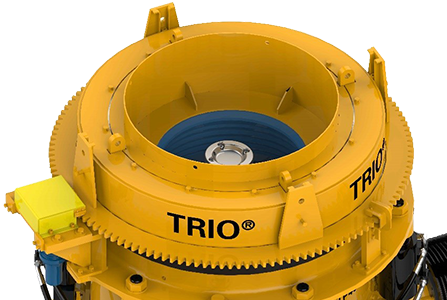

Trio Cone Crusher 2

TRIO CONE CRUSHER TP SERIES

Design Feature BenefitApplications
Compact design Easy retrofit or replacement of lower performing crushers Secondary, tertiary or quaternary stage crushing circuits
Counterweights Reduces unbalanced forces and moments for increased mobility or placing on existing foundations Specification size and/or shape classification for aggregate crushing
Spiral bevel gears Reduced gear noise and longer gear life Crushing ore for direct reduction, leaching or milling operations
Hydraulic adjustment Easy adjustment of Closed Side Setting (CSS)
Hydraulic tramp release Prevents interruption of operation due to uncrushable materials
Hydraulic clearing Allows for safe clearing of crusher chamber in the event of crusher stall under load

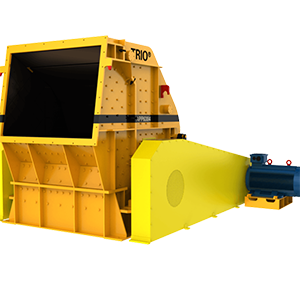

TRIO HSI CRUSHERS APP & APS SERIES

Design Feature BenefitApplications
Heavy mass Greater durability for frequent overload conditions Secondary and tertiary stage crushing circuits
Tapered sleeve bearings Well proven design for cone crushers Specification size and/or shape classification for aggregate crushing
Spiral bevel gears Reduced gear noise and longer gear life Crushing ore for leaching or milling operations
Hydraulic adjustment Easy adjustment of Closed Side Setting (CSS)
Hydraulic tramp release Prevents interruption of operation due to uncrushable materials
Hydraulic clearing Allows for safe clearing of crusher chamber in the event of crusher stall under load

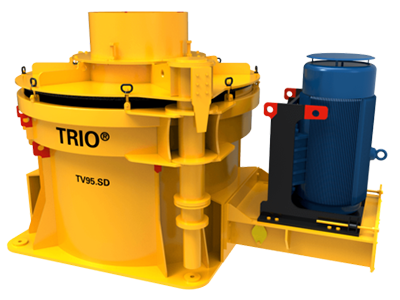

TRIO VSI CRUSHERS TV SERIES

Design Feature BenefitApplications
Oversized feed hopper Allows for easier feed conveyor placement Fractured gravel
Hydraulic lid opening Provides easy access into the crusher for inspection Manufactured sand
Externally adjusted feed tube Allows for the adjustment of the feed tube without opening the crusher • Precious metals recovery
Air transfer system Reduces dust emission Re-crush of slow selling inventory
Adjustable and flexible crushing chamber options including Steel on Steel (SOS), Rock on Steel (ROS), and Rock on Rock (ROR) Provides maximum application flexibility Crushing and grinding of man-made materials for industrial abrasives
Oil lubrication with oil flow meter protection, oil heating and cooling with shut-down protection Provides excellent performance and protects the bearing assembly
